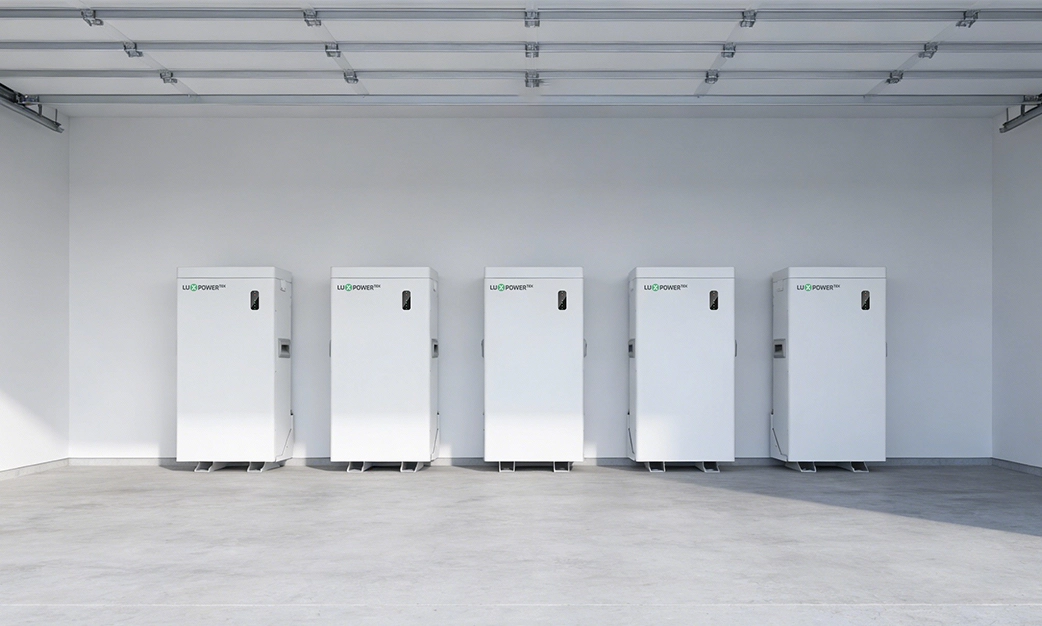

Flexible Parallel Expansion
With energy capacity spanning 16.076kWh to 803.8kWh through up to 50 parallel units, it effortlessly fulfills your household power requirements.
Smart BMS Management
Multi-level protection for over-charge, over-discharge, short circuit and reverse connect protection.

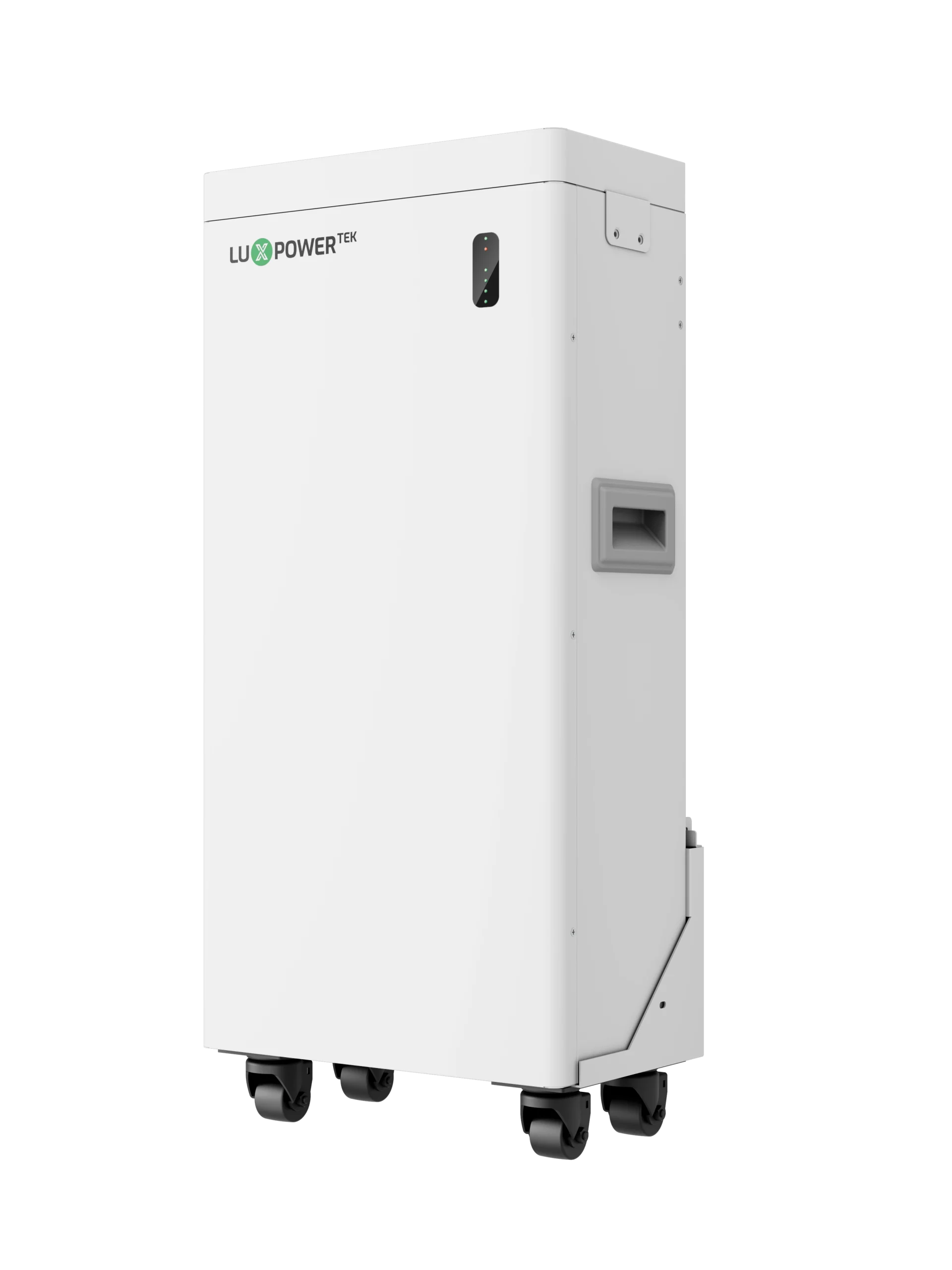

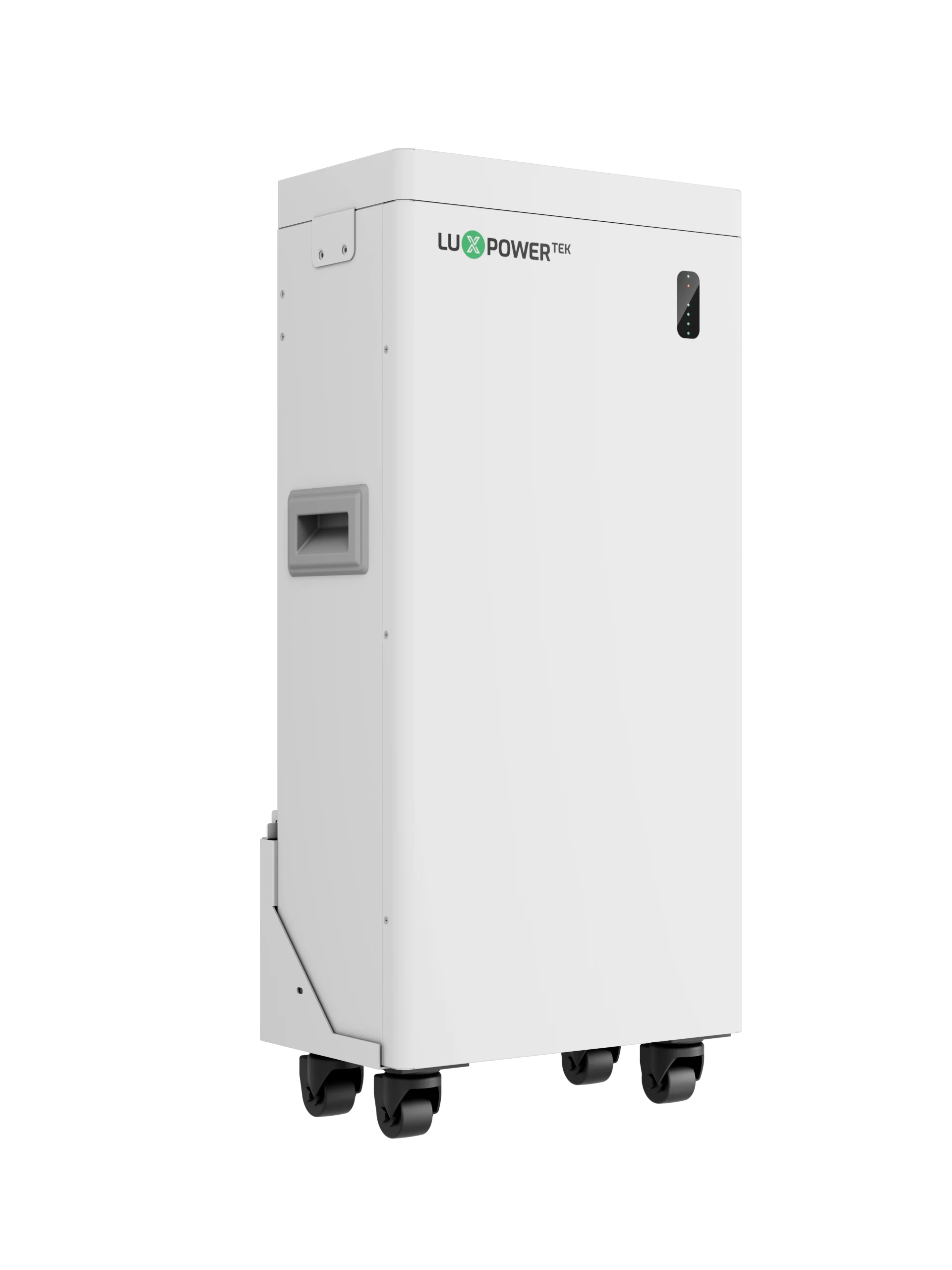

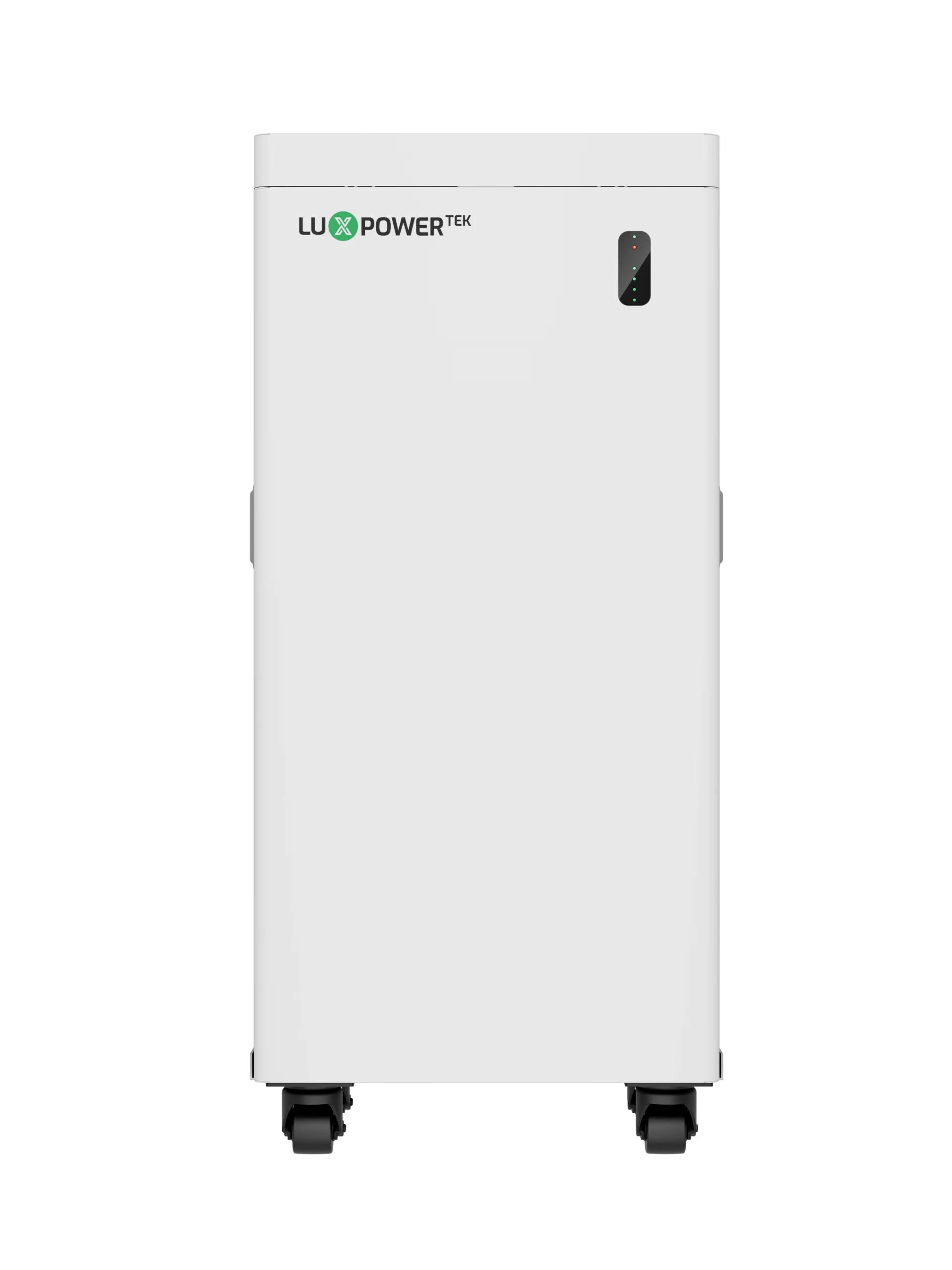

PGEM MAX
Rated Energy
16.076kWh
Rated Capacity
314Ah
Max Continuous Charge / Discharge Current
160A / 200A
Maximum parallel units
50 Units
Up to 803.8kWh
Warranty
8000＋ cycles
10 years

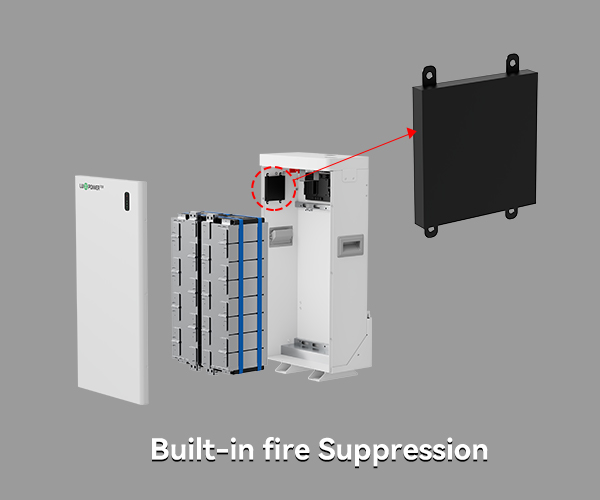

Fire Suppression
Built-in fire protection
Protection
Over Charge / Discharge / Current / Voltage / Temperature Protection
Short circuit protection
Reverse connection protection
Low SOC protection
Charge balance

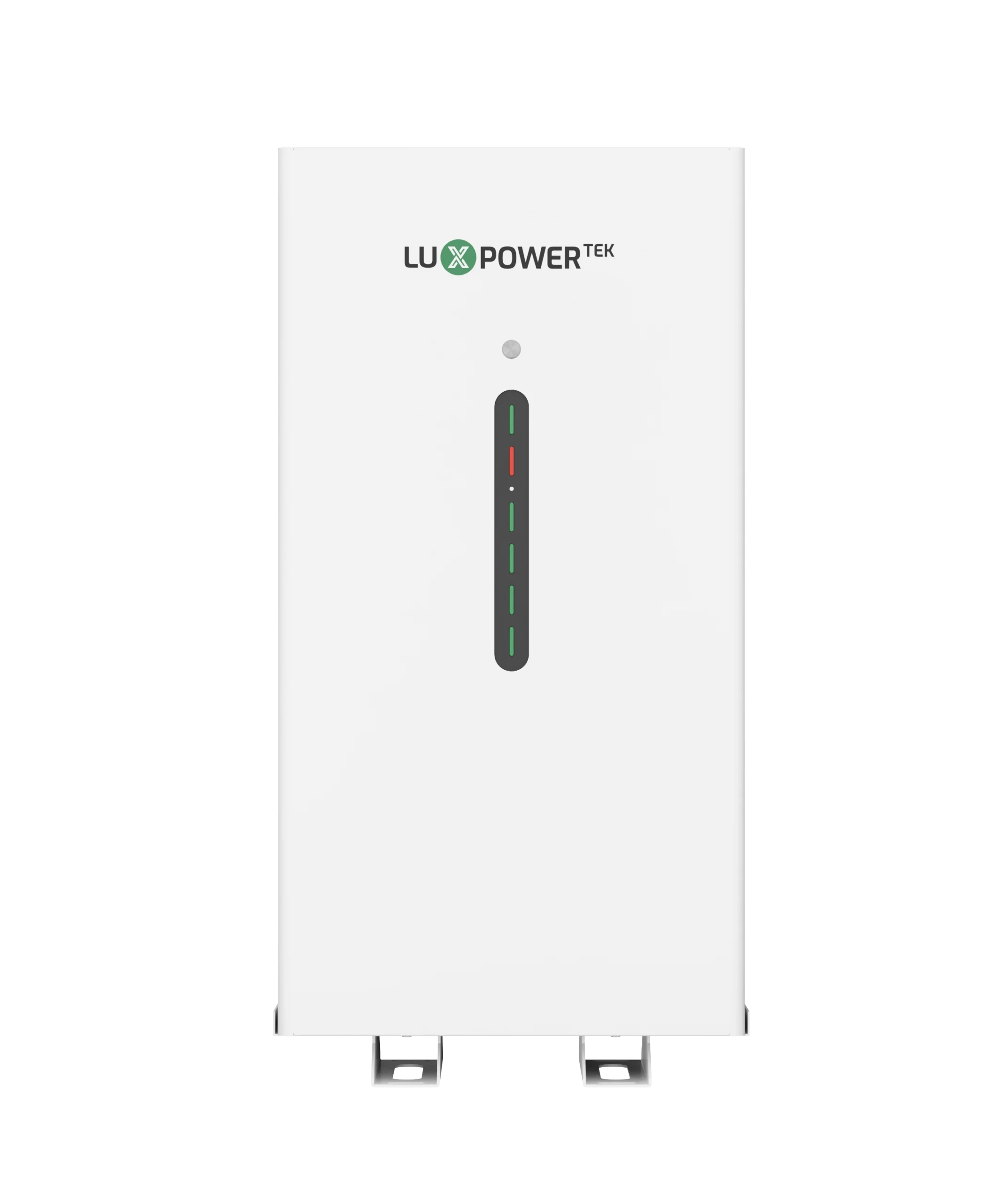

PGEM PRO
Rated Energy
14.3kWh
Rated Capacity
280Ah
Max Continuous Charge / Discharge Current
140A / 200A
Maximum parallel units
32 Units
Up to 457.6kWh
Warranty
8000＋ cycles
10 years
Fire Suppression
Built-in fire protection
Protection
Over Charge / Discharge / Current / Voltage / Temperature Protection
Short circuit protection
Reverse connection protection
Low SOC protection
Charge balance

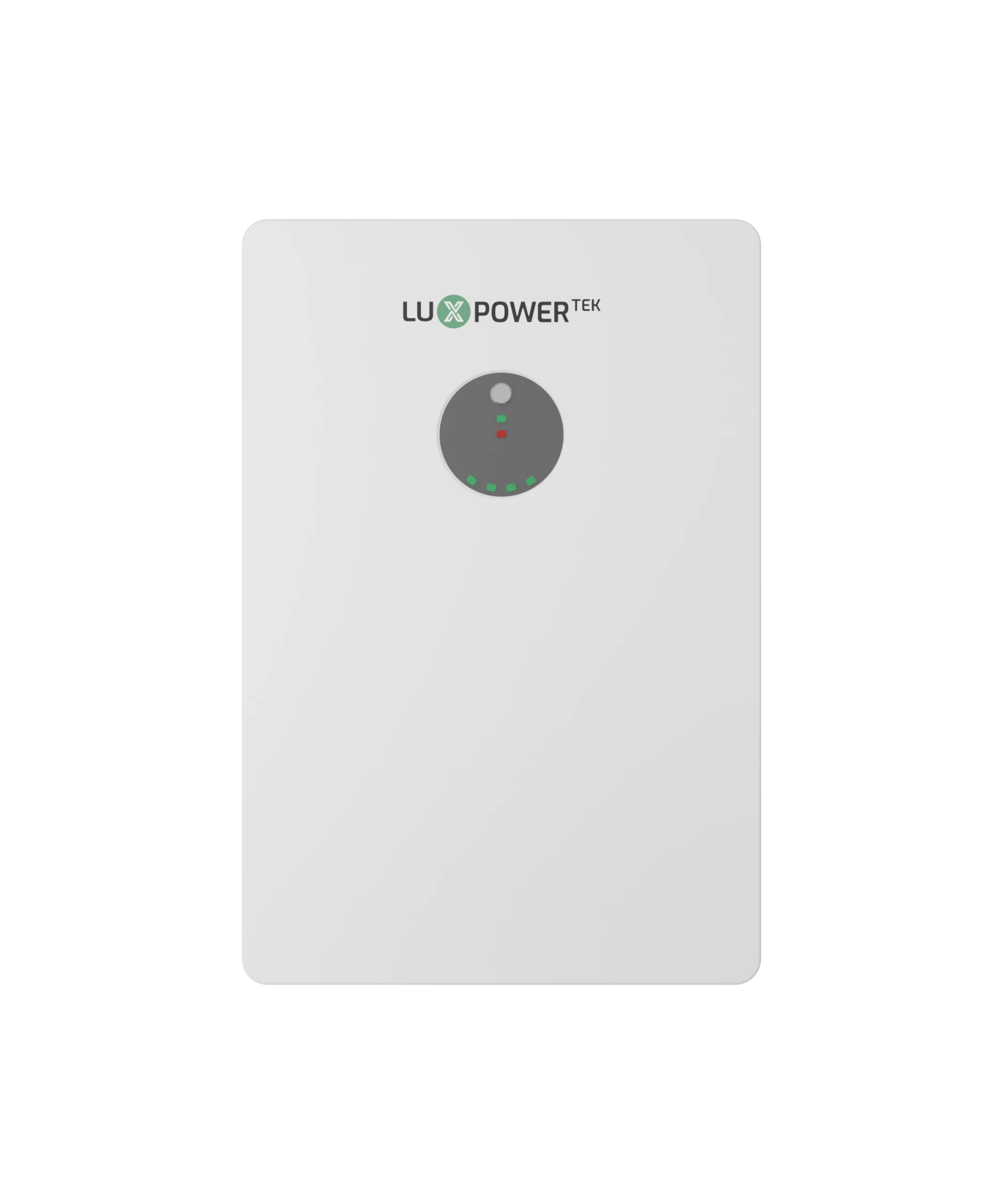

PGEM
Rated Energy
5.12kWh
Rated Capacity
100Ah
Max Continuous Charge / Discharge Current
100A / 200A
Maximum parallel units
50 Units
Up to 256kWh
Warranty
6000＋ cycles
10 years
Fire Suppression
Built-in fire protection
Protection
Over Charge / Discharge / Current / Voltage / Temperature Protection
Short circuit protection
Reverse connection protection
Low SOC protection
Stronger active balance
Related Products
PGEM MAX
Datasheet
User Manual
Q&A
The PGEM MAX is a high-capacity low-voltage lithium battery designed for residential and larger energy storage applications. It is suitable for systems requiring higher storage capacity, higher battery current and flexible expansion.
The PGEM MAX uses 314Ah battery cells and is designed for low-voltage energy storage systems. Its nominal voltage and total energy capacity should be referenced according to the specific PGEM MAX model configuration.
Each PGEM MAX supports up to 160A charge/discharge current, making it suitable for higher-power hybrid inverter and backup applications.
PGEM MAX supports a 0.5C charge/discharge rate, allowing the battery to deliver or receive substantial power relative to its energy capacity. This is especially useful for high-power backup and faster energy cycling.
PGEM MAX can work with compatible LuxpowerTek low-voltage hybrid inverters. For example, it is well suited to newer high-current inverter platforms. Refer to the latest LuxpowerTek battery compatibility list for specific models.
Yes. PGEM MAX supports up to 50 batteries in parallel, providing substantial scalability for larger residential and light commercial energy storage systems.
Yes. The built-in Battery Management System (BMS) communicates with compatible inverters to coordinate charging and discharging and provide battery status and protection information.
Yes. Its 314Ah capacity and up to 160A current per battery make it suitable for systems with higher backup power requirements. Actual system performance also depends on the inverter configuration and number of batteries installed.
Yes. Its modular architecture allows additional compatible batteries to be added as storage requirements grow, with support for up to 50 units in parallel. Existing and new batteries should meet the applicable installation and system-matching requirements.
