Usage Scenario

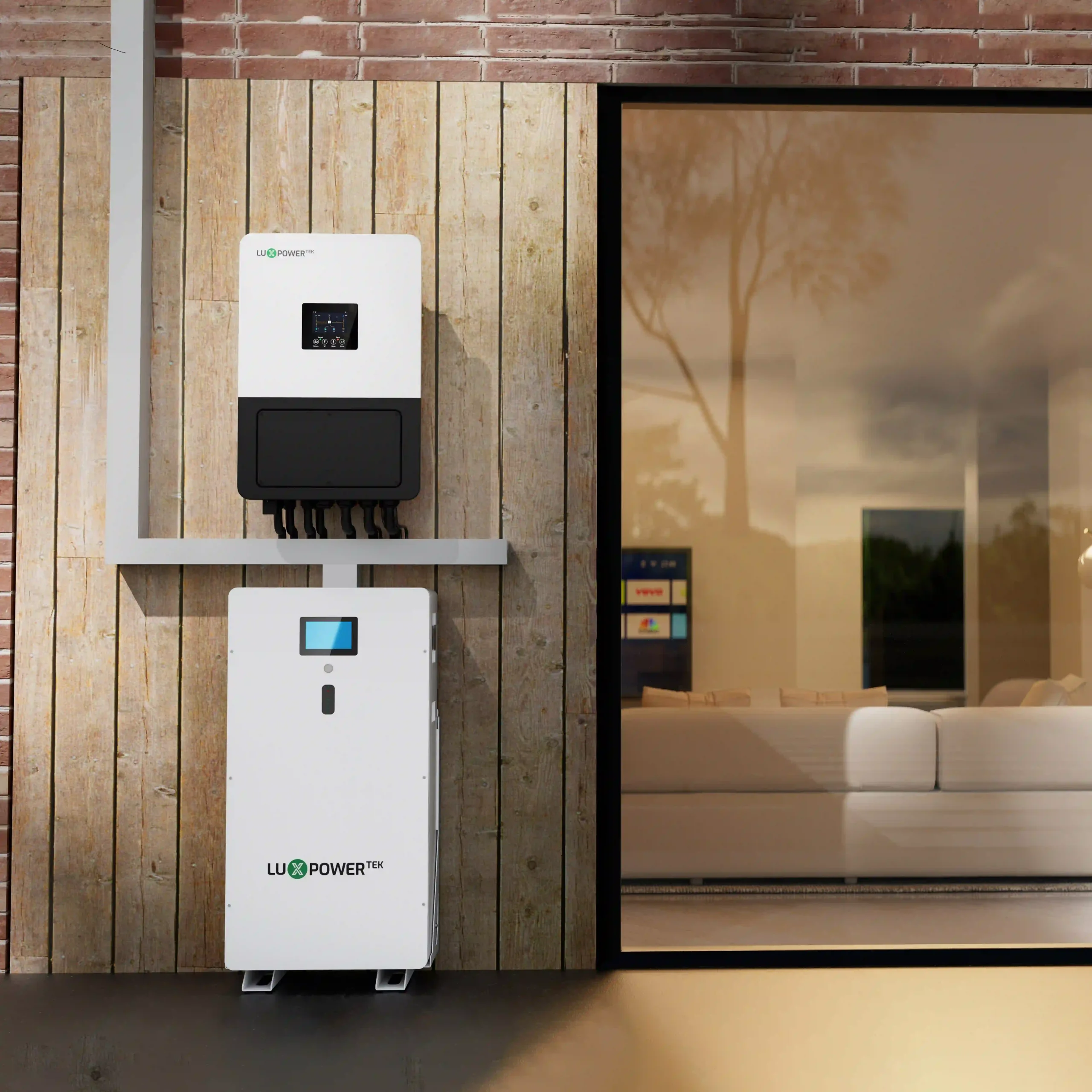

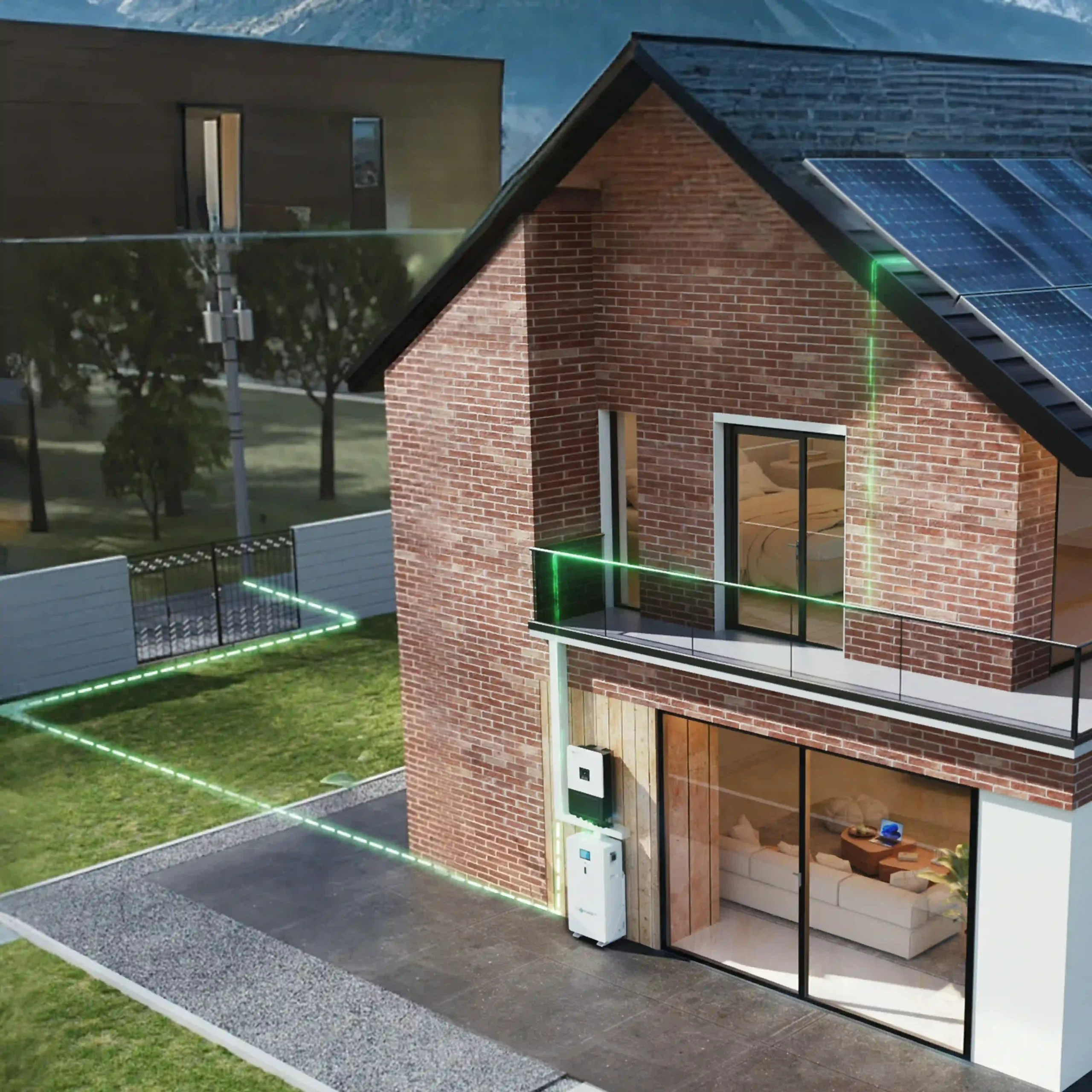

Large Homes & Villas

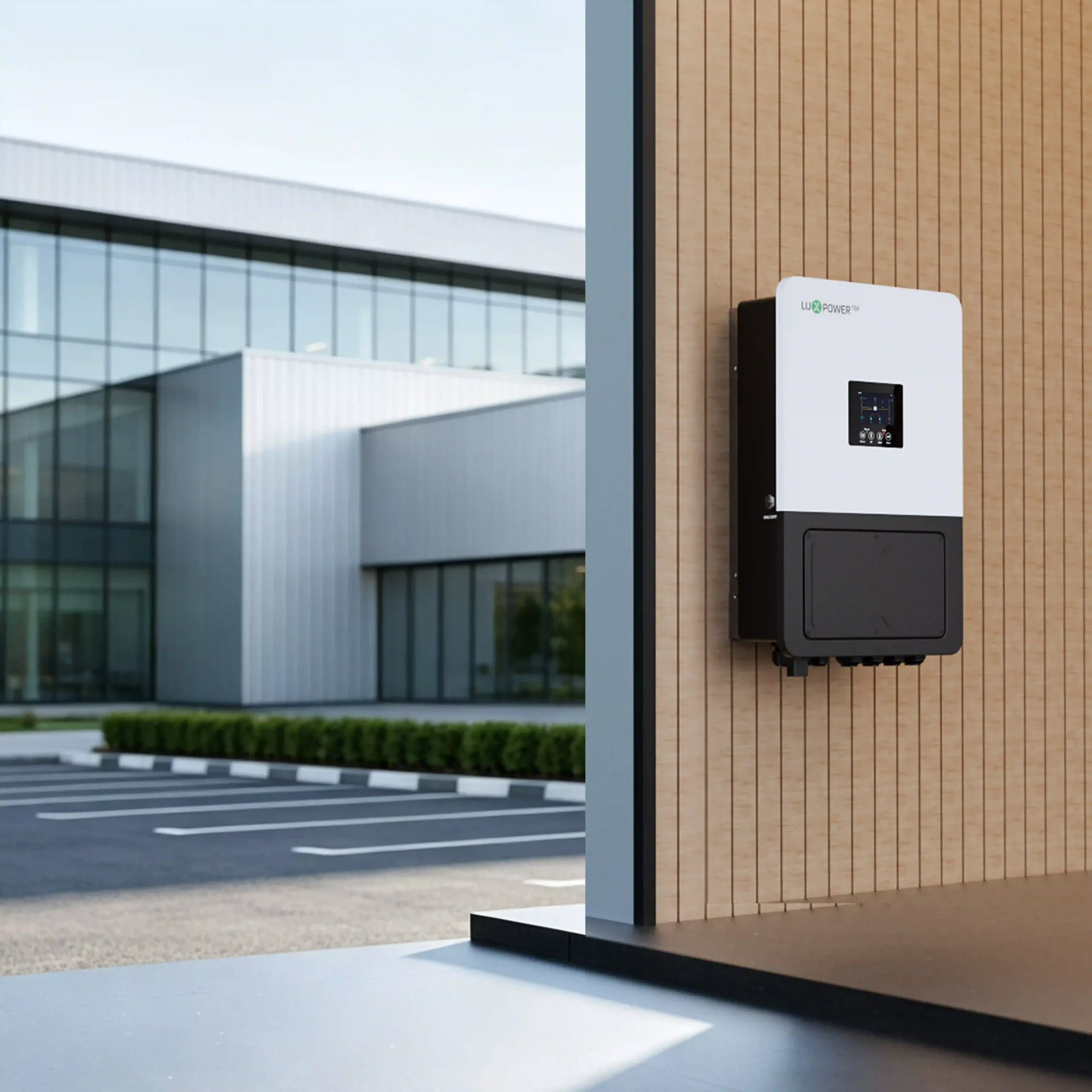

Workshops & Small Businesses
Peak Shaving & Grid Export

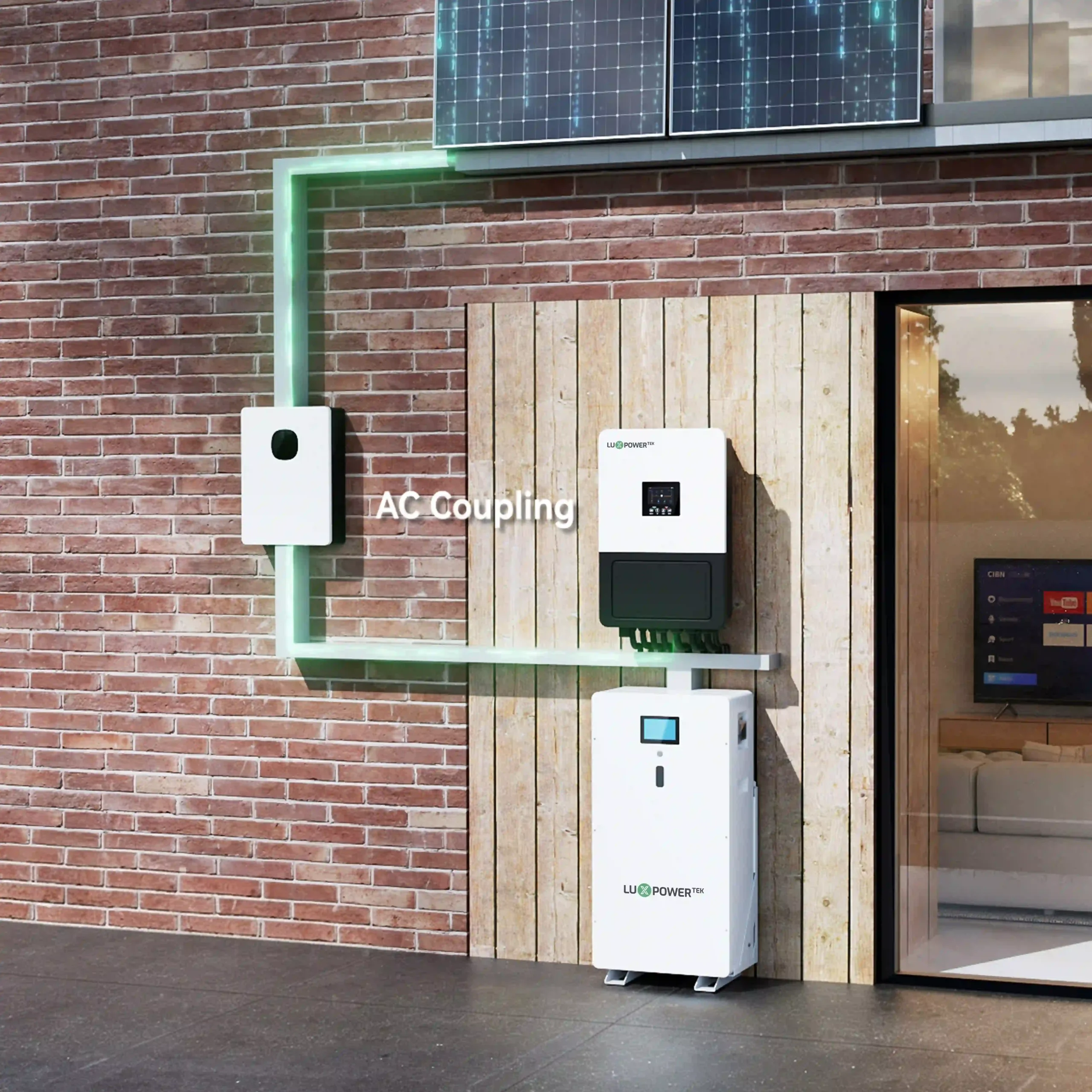

AC-Coupled Retrofit
Usage Scenario

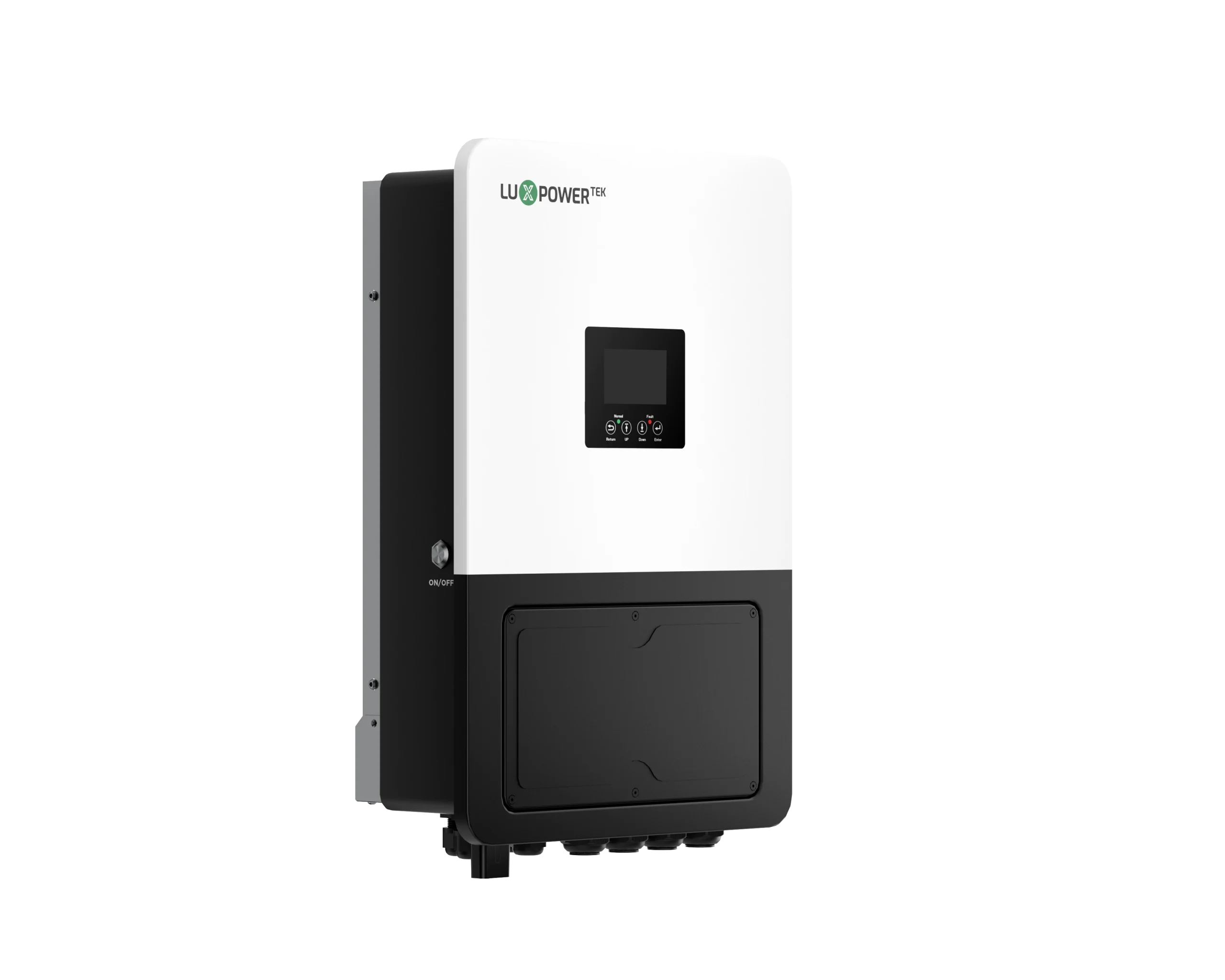

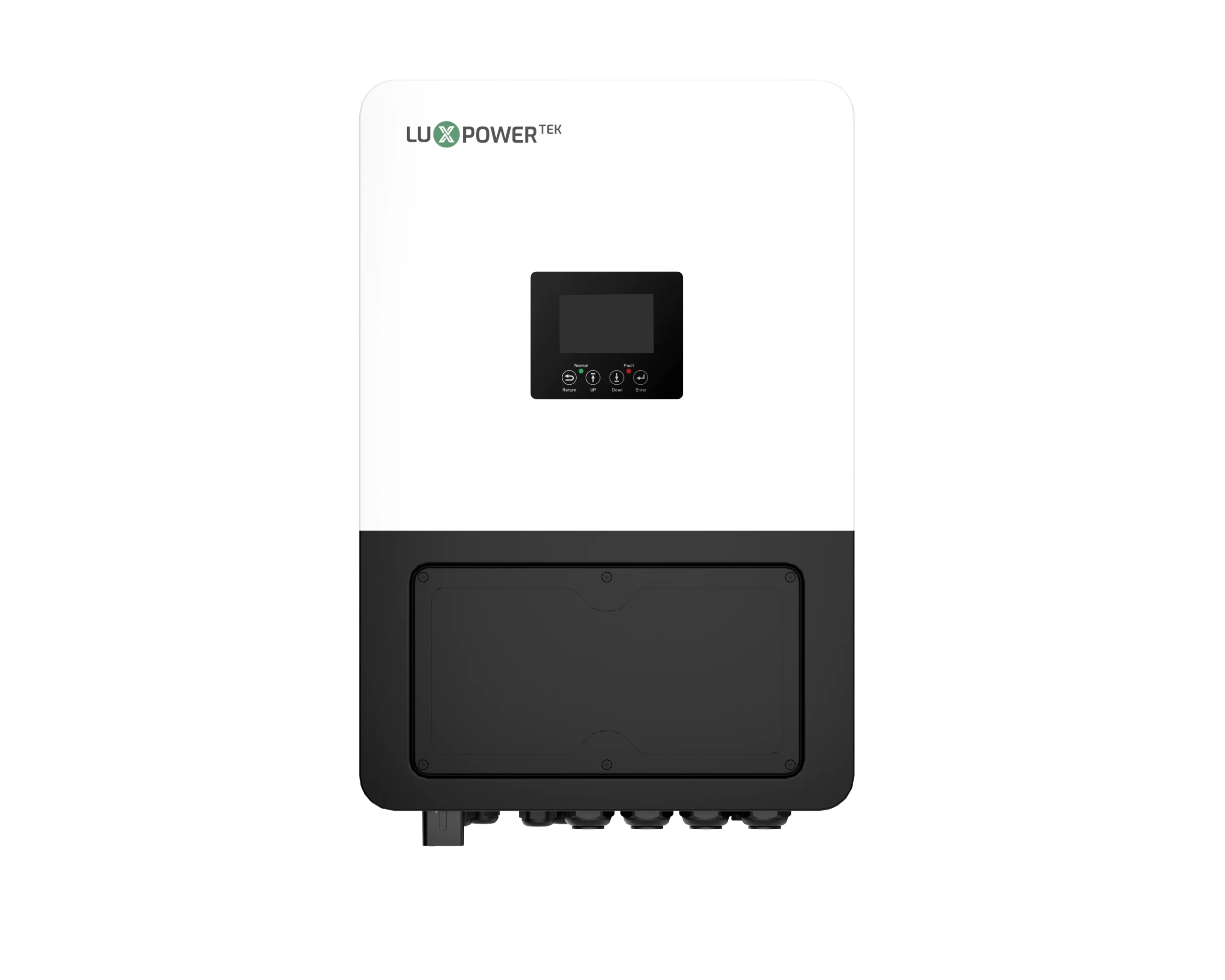

GEN PRO-LB-EU
8/10/12K
| Feature | GEN PRO-LB-EU 8-12K |
|---|---|
| PV | |

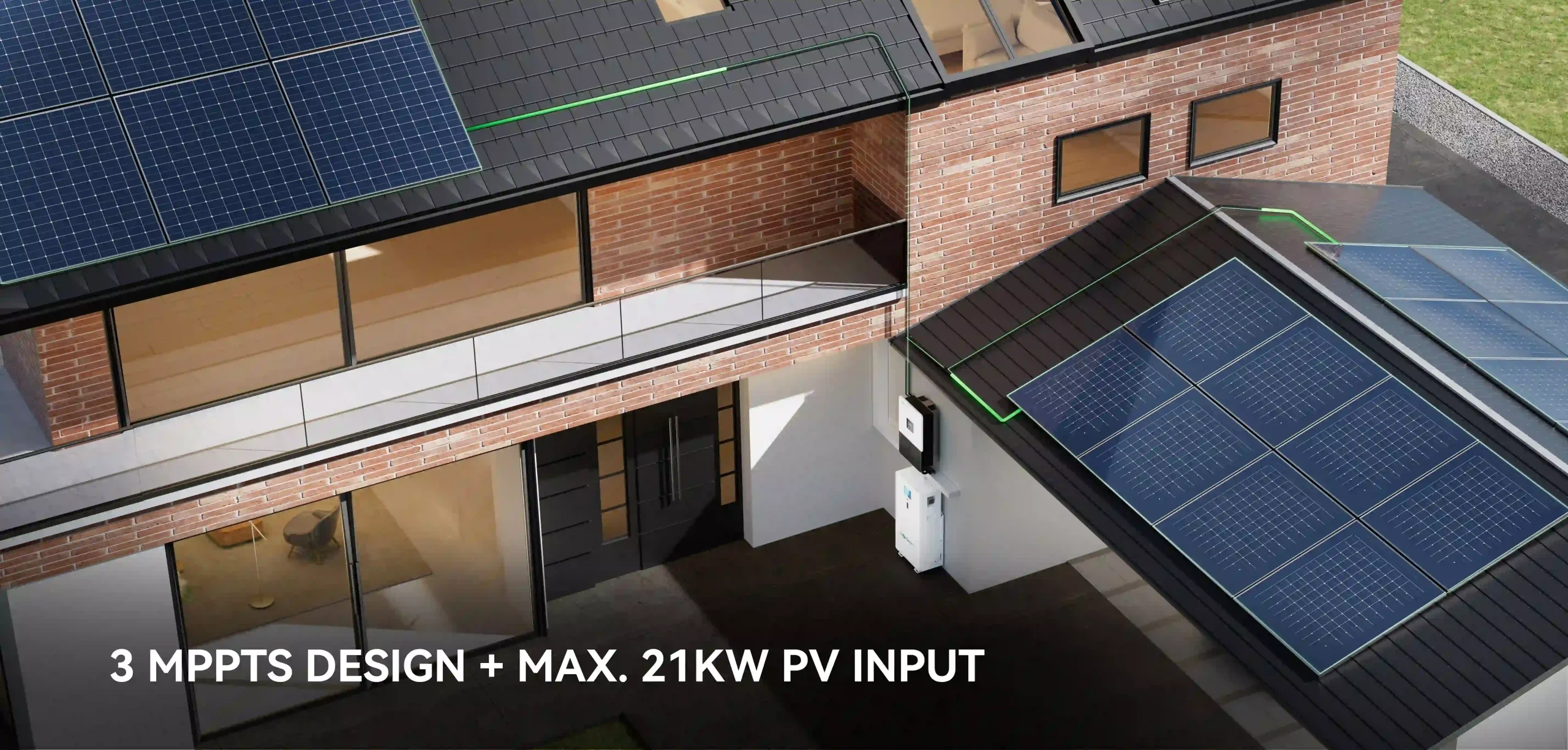

| Max. PV Input Power | Up to 21kW |
| Independent MPPT | 3 |
| Max. PV Input Current | 20A × 3 |
| MPPT Voltage Range | 60–425V |
| Battery | |
| Battery Type | Lithium-ion / Lead-Acid |
| Battery Voltage | 48V |
| Max. Charge / Discharge Current | Up to 270A |
| AC & Generator | |

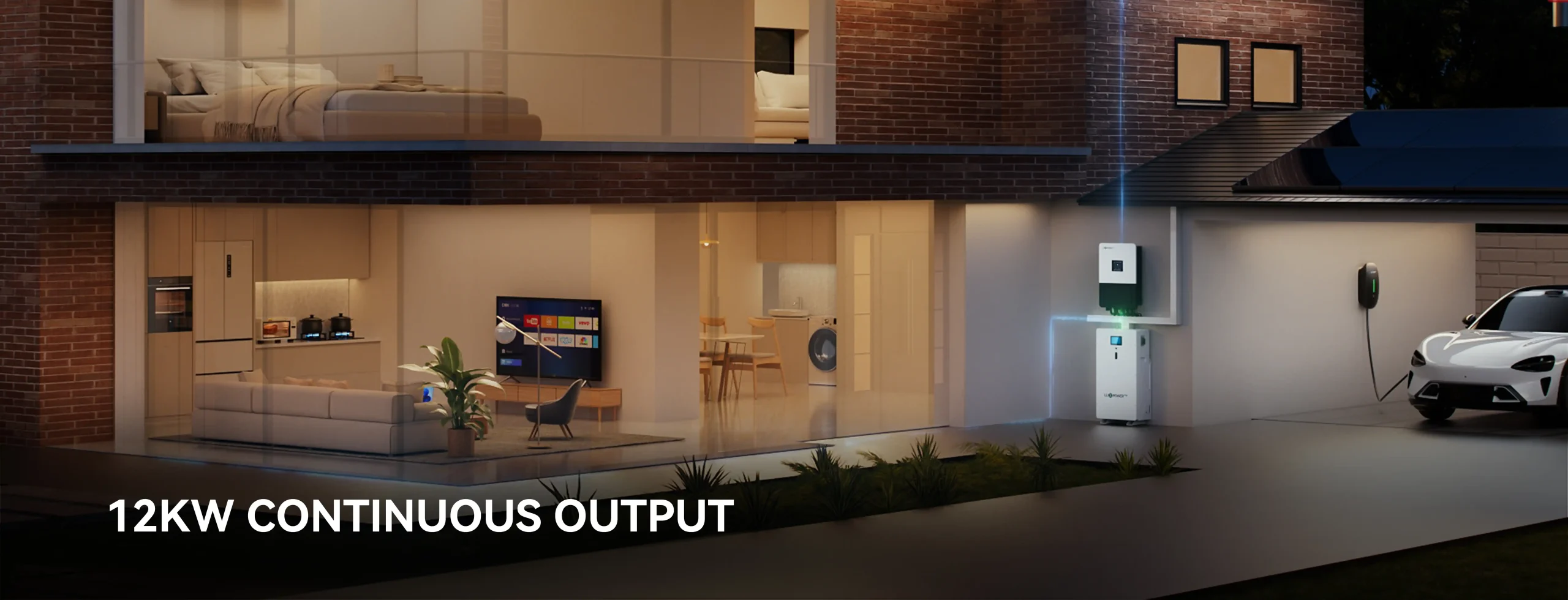

| Rated Output Power | 8 / 10 / 12kW |
| AC Passthrough Current | 100A |
| GEN Input Power | 18.4kW |
| Backup & System | |
| Surge Power | 2 × rated power for 1s |
| Switching Time | 7ms |
| Parallel Capability | Up to 16 units |

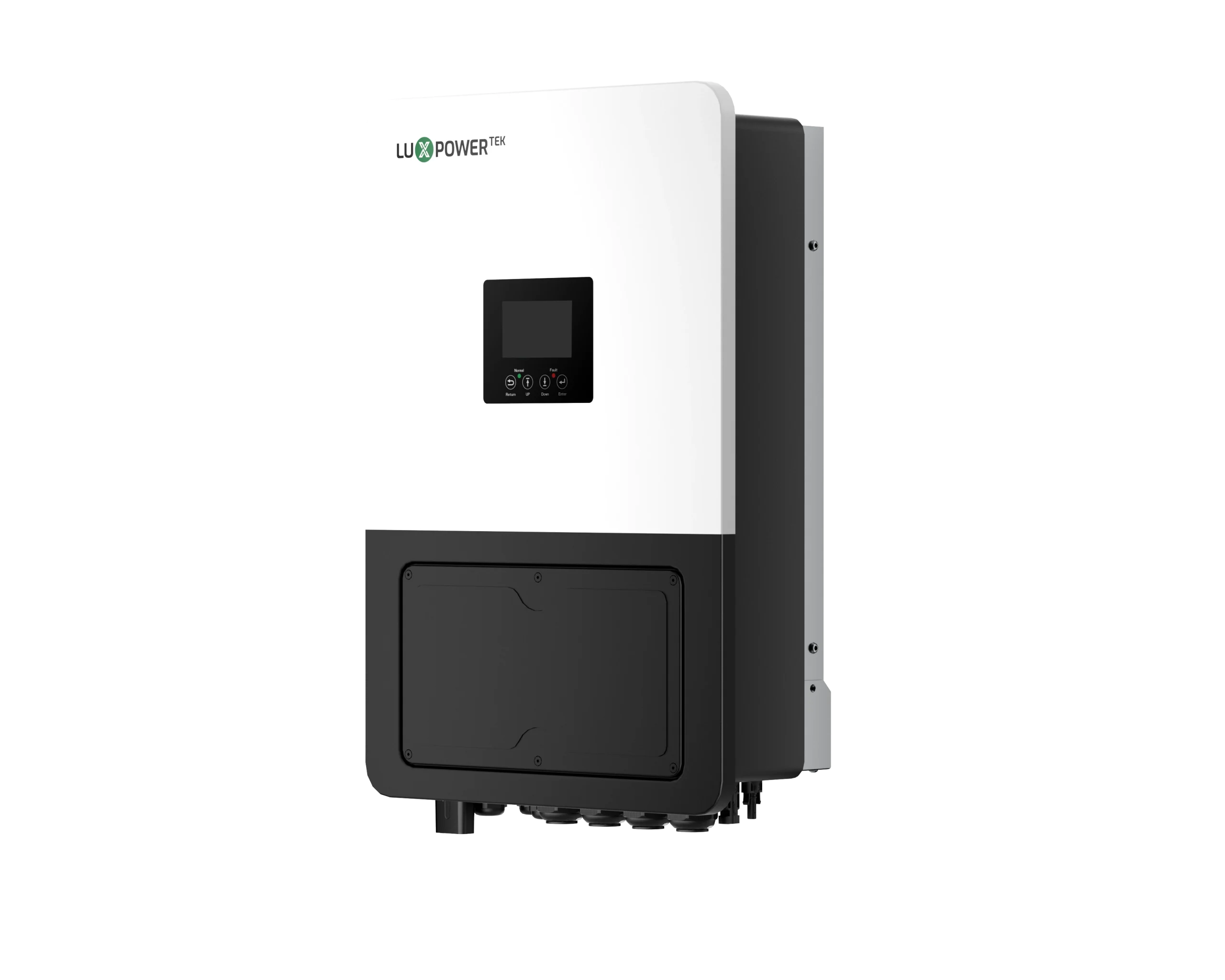

| Protection Rating | IP66 |
Related Products
GEN PRO-LB-EU 12K
Rated Output Power
12,000W
Max PV Input Power
20,000W
Max Charge/Discharge
270A
Scalability
Supports up to 10 units in parallel
Dimensions (W*H*D)
520*653*275mm
Weight (kg)
30.2kg
GEN2-LB-EU 12K
Rated Output Power
12,000W
Max PV Input Power
18,000W
Max Charge/Discharge
250A
Scalability
Supports up to 10 units in parallel
Dimensions (W*H*D)
417*615.5*229.5mm
Weight (kg)
48kg
GEN PRO-LB-EU 8-12k
Datasheet
User Manual
Q&A
