Reliable System Protection

Equipped with a high-performance BMS that provides comprehensive protection against over-charge, over-discharge, over-current, abnormal temperatures, short circuits, and battery reverse connections.

Flexible Parallel Expansion

Supports up to 32 units in parallel, offering a flexible capacity range from 16.076kWh to 514.43kWh for customized storage solutions.

Cell-Level Diagnostics

Pinpoint specific baltery cell issues for highly efficient support, and keep your system cptimized with one-click remote updates.

Built-in Touch LCD Display

Features an integrated touch LCD screen for real-time battery status monitoring and prompt alarm detection.

Solar Energy Battery Storage: Which Is Right for You?

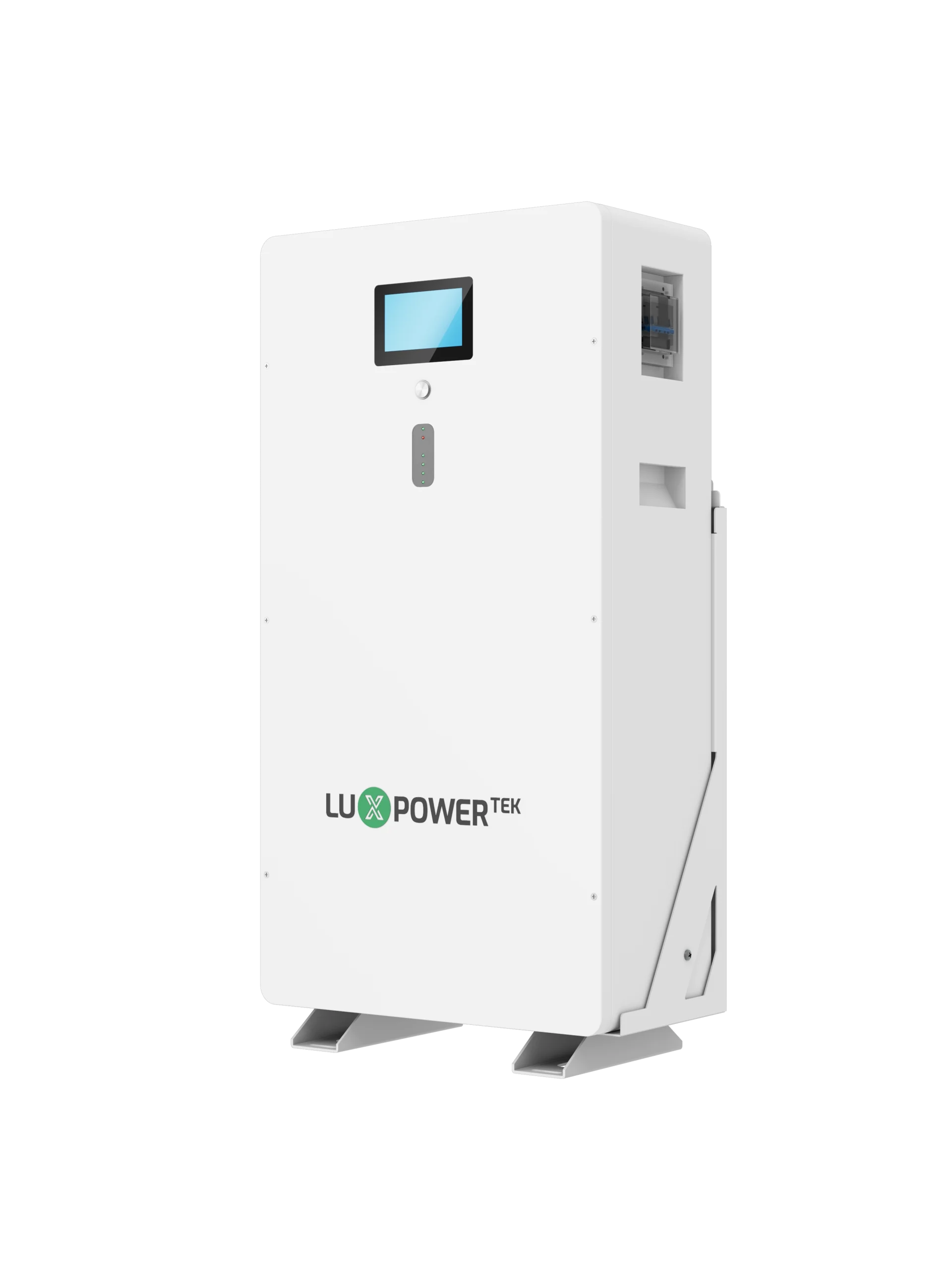

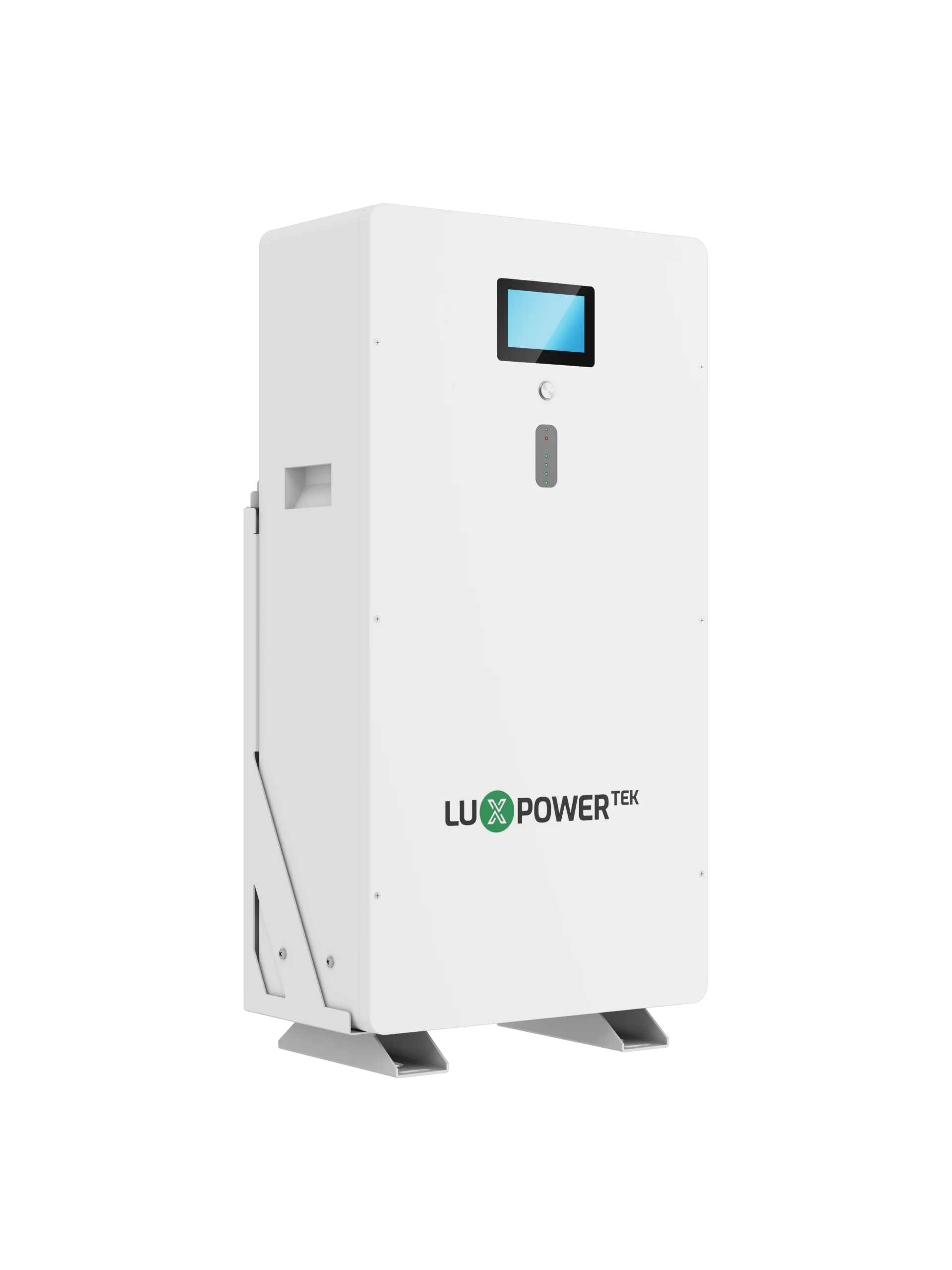

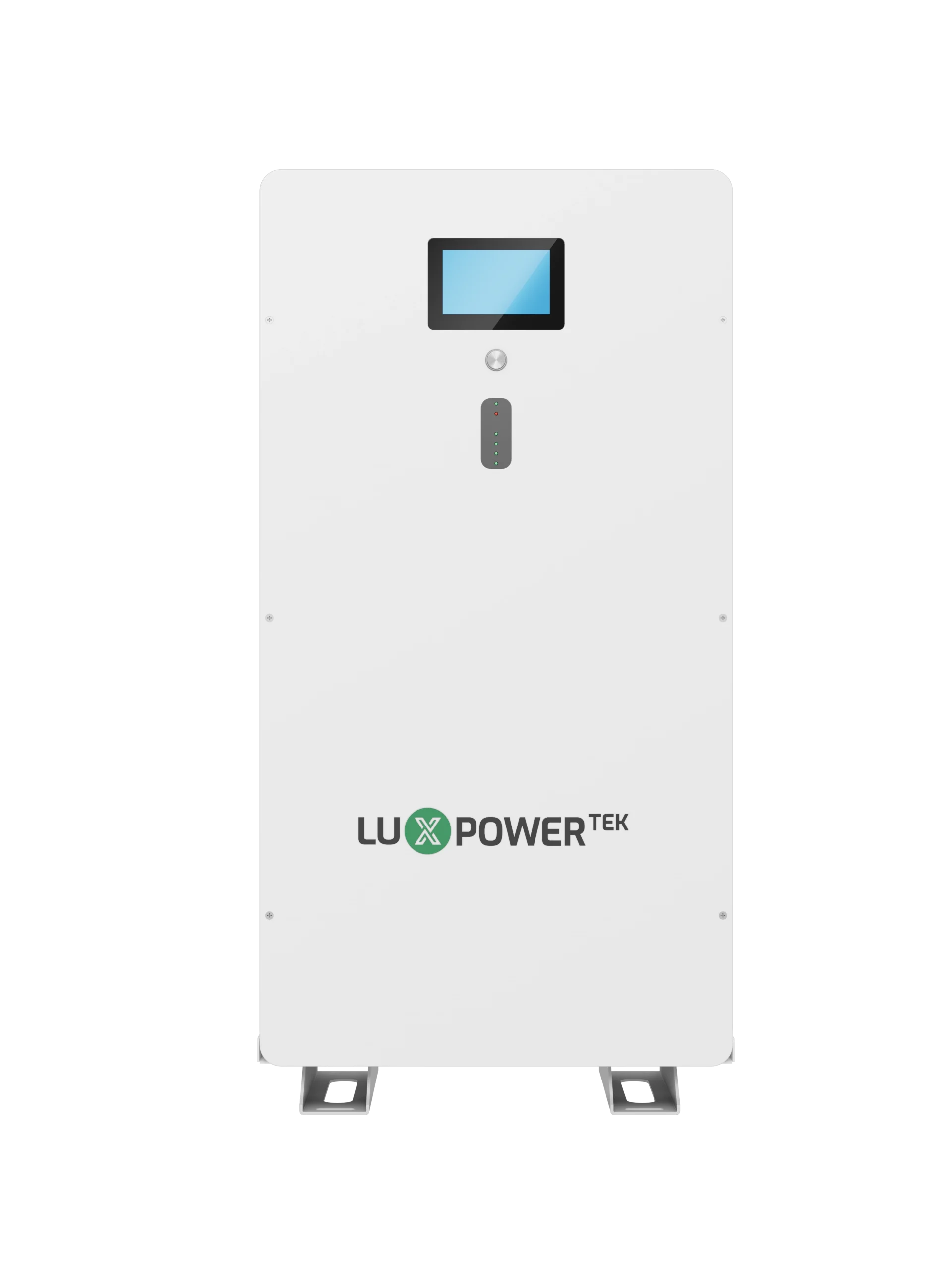

PSHIELD MAX

Rated Energy

16.076kWh

Rated Capacity

314Ah

Max Continuous Charge / Discharge Current

160A / 200A

Maximum parallel units

32 Units

Up to 514.43 kWh

Warranty

8000+ cycles

10 years

Peak Surge Resistance

105% Load (210A) / 120s

110% Load (220A) / 500ms

Protection

Over Charge / Discharge / Current / Voltage / Temperature Protection

Short circuit protection

Reverse connection protection

Low SOC protection

Charge balance

Total Weight

119Kg

PSHIELD

Rated Energy

5.12kWh

Rated Capacity

100Ah

Max Continuous Charge / Discharge Current

100A

Maximum parallel units

50 Units

Up to 256 kWh

Warranty

6000+ cycles

10 years

Peak Surge Resistance

105% Load (105A) / 15s

150% Load (150A) / 500ms

Protection

Over Charge / Discharge / Current / Voltage / Temperature Protection

Short circuit protection

Reverse connection protection

Low SOC protection

Charge balance

Total Weight

56.65Kg

Solar Energy Battery Storage: Which Is Right for You?

PSHIELD MAX

Know More

Rated Energy

16.076kWh

Rated Capacity

314Ah

Max Continuous Charge / Discharge Current

160A / 200A

Maximum parallel units

32 Units

Up to 514.43 kWh

Warranty

8000+ cycles

10 years

Peak Surge Resistance

105% Load (210A) / 120s

110% Load (220A) / 500ms

Protection

Over Charge / Discharge / Current / Voltage / Temperature Protection

Short circuit protection

Reverse connection protection

Low SOC protection

Charge balance

Total Weight

119Kg

PSHIELD

Know More

Rated Energy

5.12kWh

Rated Capacity

100Ah

Max Continuous Charge / Discharge Current

100A

Maximum parallel units

50 Units

Up to 256 kWh

Warranty

6000+ cycles

10 years

Peak Surge Resistance

105% Load (105A) / 15s

150% Load (150A) / 500ms

Protection

Over Charge / Discharge / Current / Voltage / Temperature Protection

Short circuit protection

Reverse connection protection

Low SOC protection

Charge balance

Total Weight

56.65Kg
