Parameter Specifications

LuxpowerTek LSP 100K commercial solar inverter
Parameter LSP 100K
PV Input
Max. Input Power 200 kW
Max. Input Voltage 1100 V
MPPT Voltage Range 300–900 V / 300–1000 V*
Max. Current per MPPT Input 26 A
Number of MPPT Inputs 12
Number of Input Strings 24
Battery
Max. Charge / Discharge Power 100 kW
Voltage Range 300–850 V / 300–700 V*
Max. Charge / Discharge Current 200 A
Max. Charge / Discharge Efficiency 98.10%
PV Output
DC-DC Output Rated Power 100 kW
Output Voltage Range 500–1000 V
Output Strings 12
Output Trackers 12
General
Dimensions (W × H × D) 1015 × 680 × 310 mm
Weight (with Mounting Plate) 120 kg
Protection Degree Rating IP65
Cooling Method Natural Cooling

Industrial and commercial grid retrofits for cost savings. LSP 100K is specifically designed for upgrading existing grid-tied systems. By connecting to the existing grid inverter on the DC side and seamlessly integrating with solar PV and energy storage batteries, it maximizes the utilization of solar energy. With a focus on self-consumption, it enhances energy efficiency, making it an optimal choice for industrial and commercial users to reduce electricity costs.

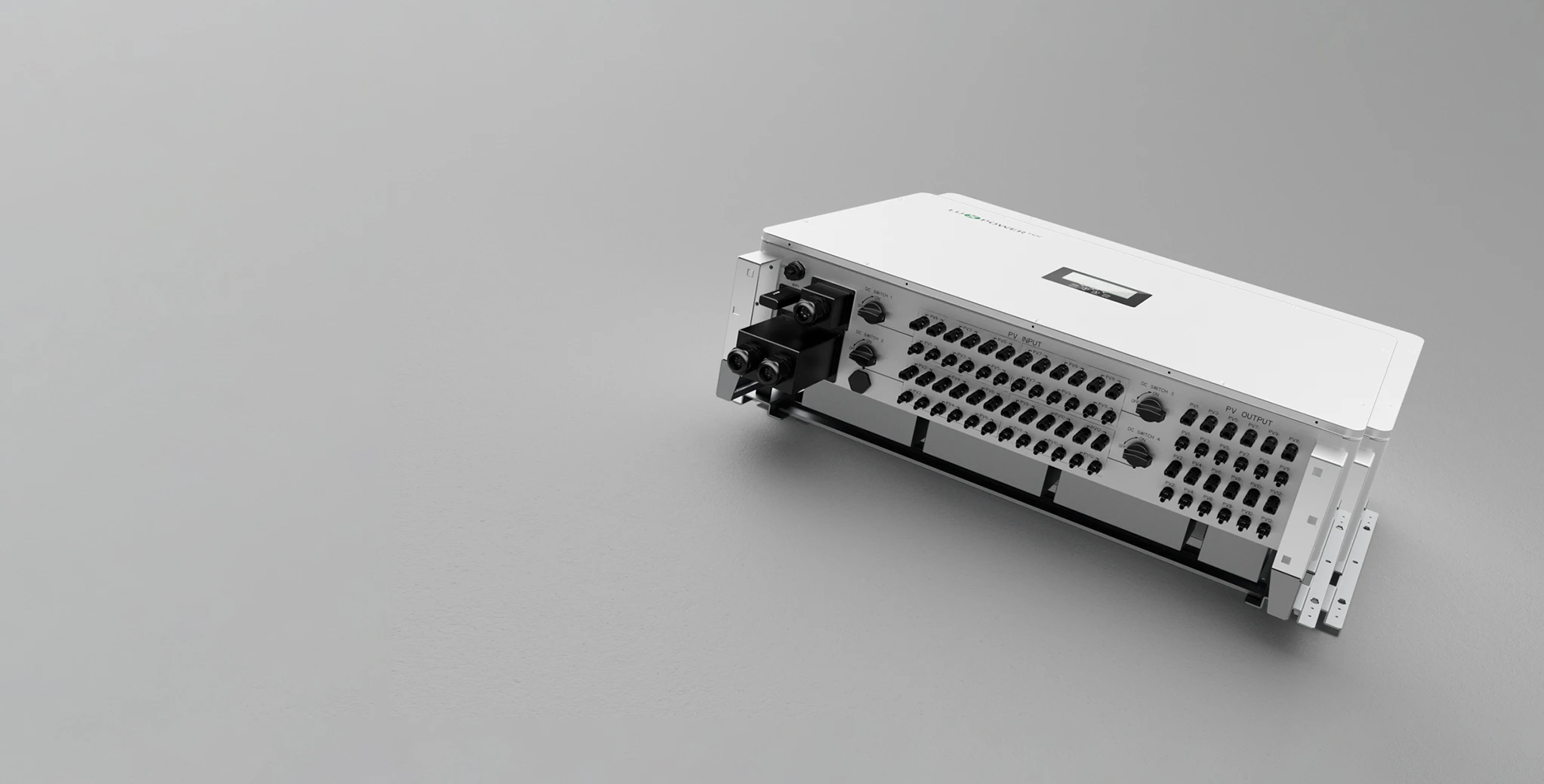

LuxpowerTek hybrid inverter and battery storage system at a solar home
After achieving a remarkable integration of photovoltaic (PV) power generation and energy storage systems, the LSP 100K DC retrofit inverter injects new vitality into practical PV systems.

Submit a Request</a >

Supporting up to 200 kW of PV input and a maximum PV output of 100kW, this inverter is built on DC-coupling technology, delivering solar electrical energy to the energy storage system in direct current form. By connecting directly to existing grid-tied inverters, linking solar panels with batteries, and transforming them into an energy storage system, it enables seamless retrofitting for commercial and industrial applications. This not only reduces installation costs but also enhances solar energy capture efficiency.
  • Max. 200kW PV input and 100kW PV output
  • Retrofit on-grid system to hybrid system (energy storage)
  • DC-coupling, 24 MPPT inputs and 12 MPPT outputs
  • 24/7 real-time monitoring via free LUX app and web
  • Advanced power management logic
  • Colorful touch LCD, IP65 for indoor/outdoor installation
Submit a Request</a >
LuxpowerTek hybrid inverter and battery storage system at a solar home
Our LSP 100K is compatible with the majority of grid-tied inverters, facilitating the retrofitting of existing grid-tied systems to meet evolving energy needs. Empower your investments in photovoltaics and energy storage, enhance efficiency, and embark on a more sustainable energy future.

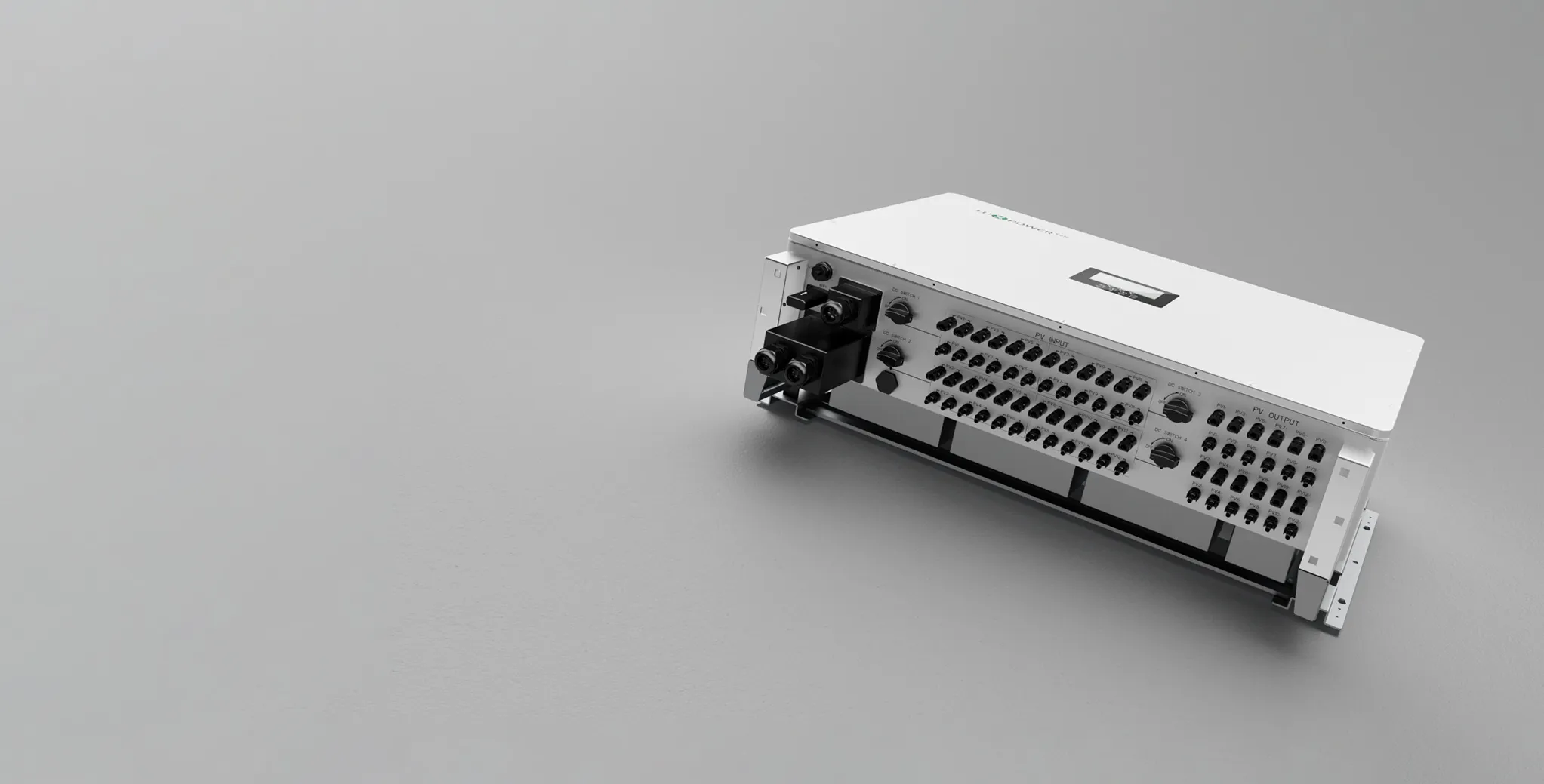

LuxpowerTek LSP 100K line Image1 hybrid solar inverter
Industrial and commercial grid retrofits for cost savings. LSP 100K is specifically designed for upgrading existing grid-tied systems. By connecting to the existing grid inverter on the DC side and seamlessly integrating with solar PV and energy storage batteries, it maximizes the utilization of solar energy. With a focus on self-consumption, it enhances energy efficiency, making it an optimal choice for industrial and commercial users to reduce electricity costs.

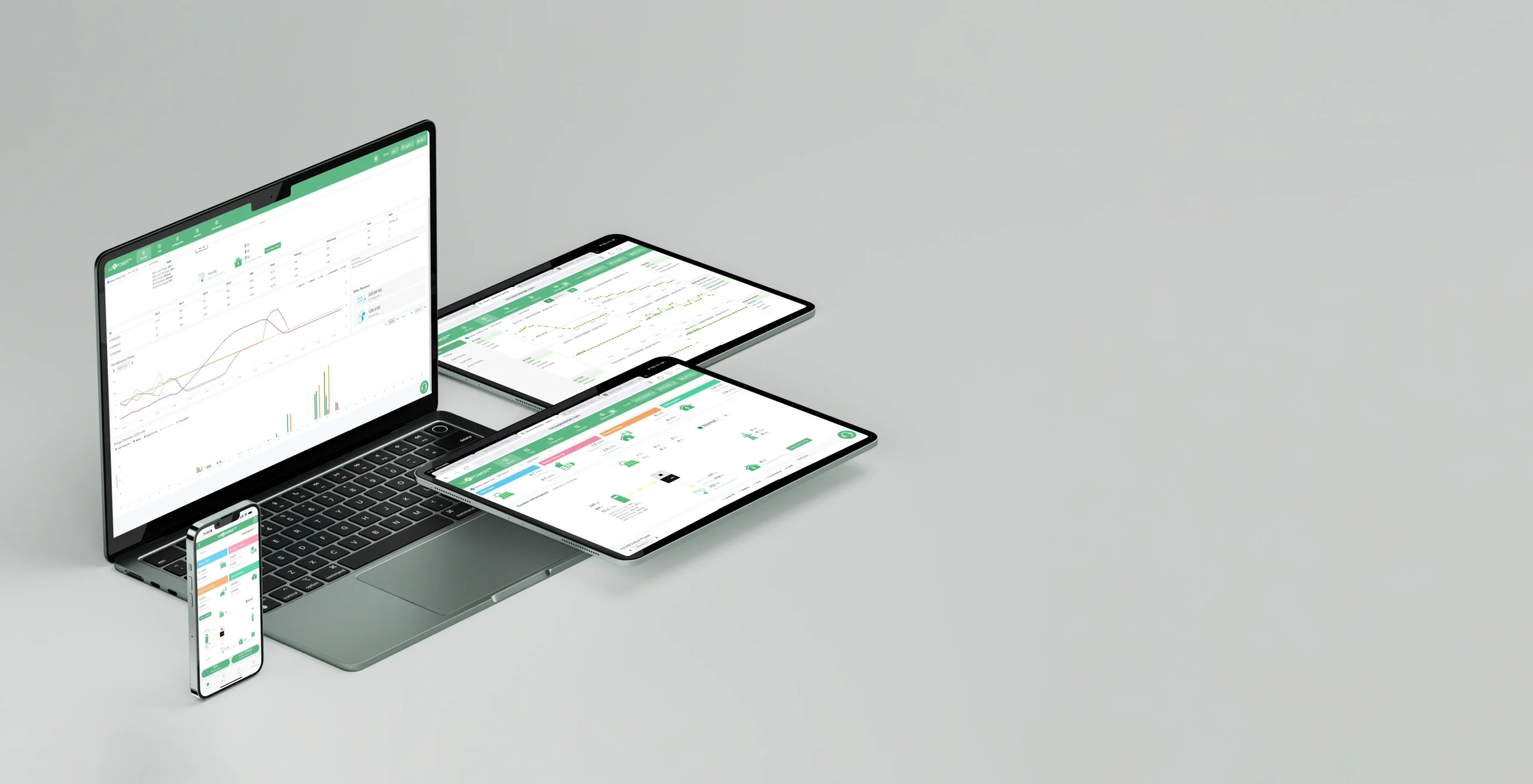

Simplify your monitoring experience

With our platform, gain real-time insights, remote management capabilities,and seamless control over your devices.Make informed decisions and optimize performance effortlessly.
